CUDA stands for Compute Unified Device Architecture. It is NVIDIA’s parallel computing platform and programming model that enables developers to harness the power of Graphics Processing Units (GPUs) not just for rendering graphics, but also for general-purpose computing tasks.

At its core, CUDA provides a programming-first model with C/C++ as the primary language binding. Beyond C/C++, developers can also use CUDA through Fortran, Python, and MATLAB bindings, making it accessible across domains.

A key idea behind CUDA programming is the concept of heterogeneous computing—where CPUs (the host) and GPUs (the device) work together. The CPU manages and schedules tasks, while the GPU executes them in massively parallel fashion. We’ll explore this idea in more detail below.

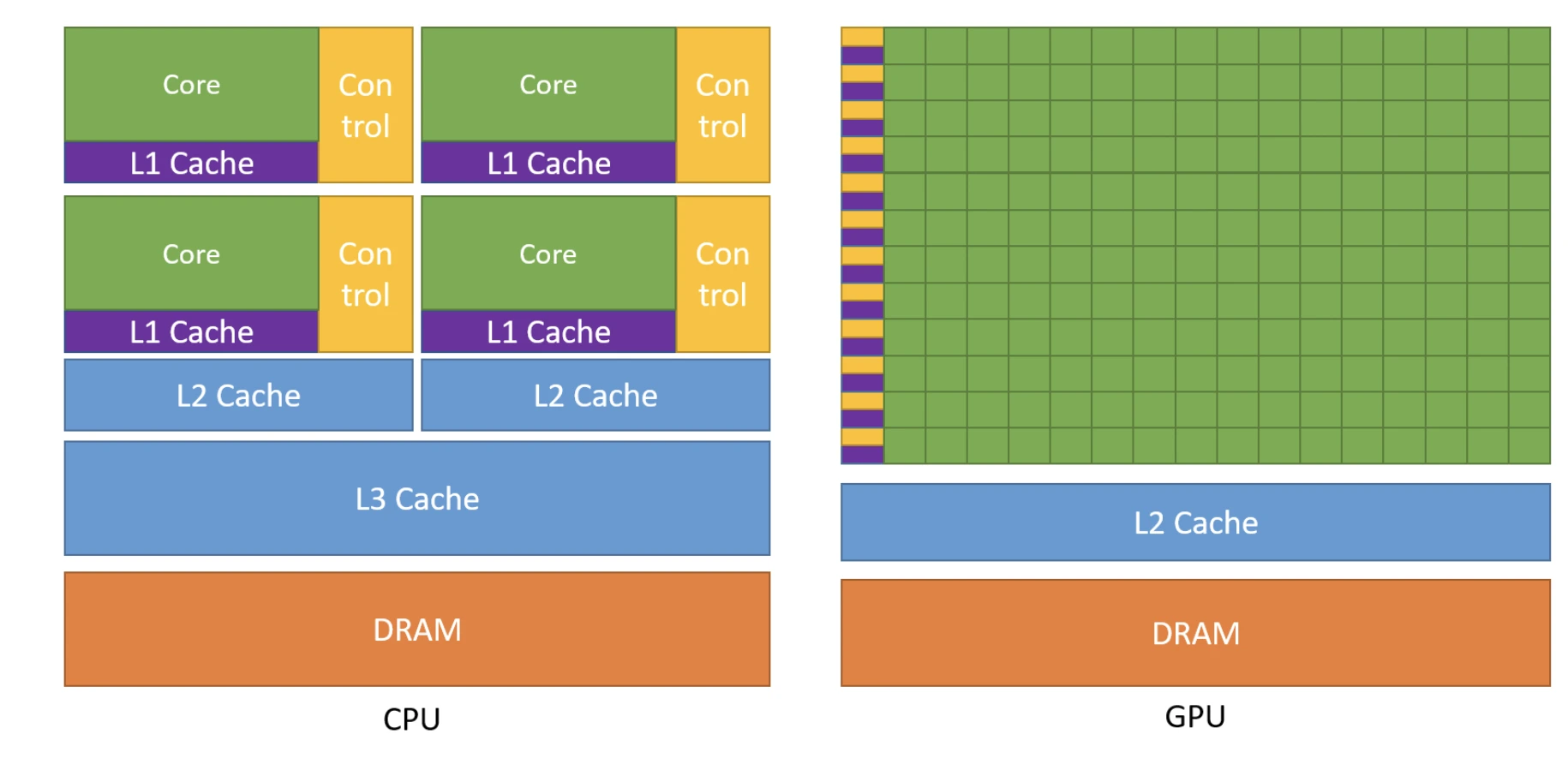

Heterogeneous Computing

Heterogeneous Computing

In CUDA programming, computation is divided between two main components:

  • Host → the CPU and its memory
  • Device → the GPU and its memory

Each is optimized for a different role. The host manages tasks such as scheduling, control flow, and lighter operations (e.g., I/O, networking). The device, on the other hand, excels at heavy computations that can benefit from massive parallelism.

The key idea is to offload compute-intensive workloads from the CPU to the GPU, while letting the CPU handle orchestration and tasks that don’t require parallel execution.

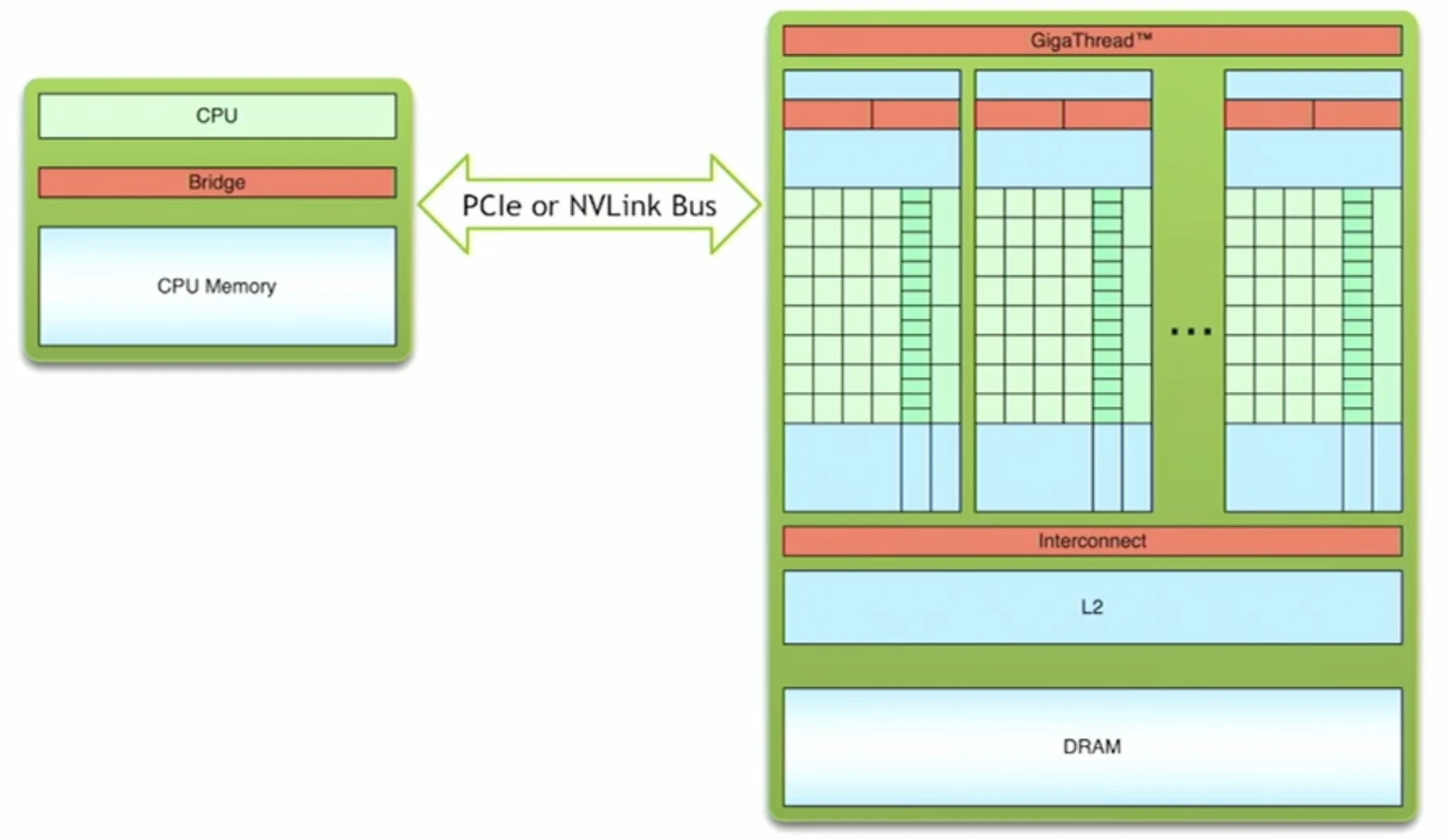

Simple Processing Flow

CPU-GPU Processing Flow

A typical CUDA program follows three main steps:

  1. Copy input data from CPU (host) memory to GPU (device) memory.
  2. Execute the kernel on the GPU — this is where the heavy lifting happens, with data loaded onto the GPU’s fast on-chip memory for maximum performance.
  3. Copy the results back from GPU memory to CPU memory for further use or output.

This flow illustrates the core idea of heterogeneous computing: the CPU manages orchestration, while the GPU accelerates data-parallel workloads.

Components of a CUDA Program

To write a CUDA program, you need to understand a few special components that make GPU programming different from regular C/C++.

Marking functions to run on GPU

By default, functions in C/C++ run on the host (CPU). To make a function run on the device (GPU), CUDA introduces special keywords.

  • __global__ → Defines a kernel function:
    1. It runs on the GPU (device).
    2. It is called from the CPU (host).

Example:

__global__ void helloGPU() {
    printf("Hello from GPU thread %d\n", threadIdx.x);
}

As you can see, without __global__, the function would run on the CPU only, but with this keyword, it can run on the GPU instead, if called with kernel launch configuration (explained below).

Compilation of Code

CUDA programs are compiled using the NVIDIA CUDA Compiler (nvcc):

  • nvcc → The compiler driver that separates host and device code.
  • Host code → compiled by a regular C++ compiler.
  • Device code (kernels) → compiled by NVIDIA’s compiler into GPU instructions (PTX → SASS).

This separation is what allows a single .cu file to contain both CPU and GPU code.

Link to learning more about NVCC: NVCC Compiler

⚙️ Kernel Launch Configuration

Calling a GPU kernel requires launch configuration parameters, which specify how many threads and blocks to use:

myKernel<<<numBlocks, threadsPerBlock>>>(arguments);
  • numBlocks → How many blocks to launch.
  • threadsPerBlock → How many threads inside each block.

Without these configuration parameters, the function would just behave like a normal C function and run on the CPU.

💾 Memory Management

Just like C uses malloc and free, CUDA provides its own functions for GPU memory management:

  • cudaMalloc() → Allocates memory on the GPU.
  • cudaFree() → Frees GPU memory.
  • cudaMemcpy() → Copies data between host and device.

⚠️ Important rule:

  • Host pointers (from malloc) and device pointers (from cudaMalloc) are not interchangeable.
  • Never try to dereference a device pointer on the CPU!

For example:

int *d_array;
cudaMalloc((void**)&d_array, 100 * sizeof(int));
cudaMemcpy(d_array, h_array, 100 * sizeof(int), cudaMemcpyHostToDevice);

A Deep Dive Into Code

We’ll start with a simple example: vector addition.

  • We have two input arrays, A and B, both of the same size and data type (float).
  • The goal is to produce an output array, C, which is also the same size.
  • For each index i, the value in C[i] is computed as:

[ C[i] = A[i] + B[i] ]

In other words, every element of C is the element-wise sum of A and B.

int main(){

  float *h_A, *h_B, *h_C, *d_A, *d_B, *d_C;
  h_A = new float[DSIZE];
  h_B = new float[DSIZE];
  h_C = new float[DSIZE];
  for (int i = 0; i < DSIZE; i++){
    h_A[i] = rand()/(float)RAND_MAX;
    h_B[i] = rand()/(float)RAND_MAX;
    h_C[i] = 0;}
  cudaMalloc(&d_A, DSIZE*sizeof(float));
  cudaMalloc(&d_B, DSIZE*sizeof(float));
  cudaMalloc(&d_C, DSIZE*sizeof(float));
  cudaCheckErrors("cudaMalloc failure");
  cudaMemcpy(d_A, h_A, DSIZE*sizeof(float), cudaMemcpyHostToDevice);
  cudaMemcpy(d_B, h_B, DSIZE*sizeof(float), cudaMemcpyHostToDevice);
  cudaCheckErrors("cudaMemcpy H2D failure");
  //cuda processing sequence step 1 is complete
  vadd<<<(DSIZE+block_size-1)/block_size, block_size>>>(d_A, d_B, d_C, DSIZE);
  cudaCheckErrors("kernel launch failure");
  //cuda processing sequence step 2 is complete
  cudaMemcpy(h_C, d_C, DSIZE*sizeof(float), cudaMemcpyDeviceToHost);
  //cuda processing sequence step 3 is complete
  cudaCheckErrors("kernel execution failure or cudaMemcpy H2D failure");
  printf("A[0] = %f\n", h_A[0]);
  printf("B[0] = %f\n", h_B[0]);
  printf("C[0] = %f\n", h_C[0]);
  return 0;
}

Breaking Down the CUDA Program

Let’s walk through this CUDA program step by step. At a high level, GPU programming with CUDA always follows the same three-step sequence:

  1. Copy data from CPU (host) memory → GPU (device) memory
  2. Launch GPU code (the kernel) to process that data in parallel
  3. Copy results from GPU memory → back to CPU memory

Now let’s map that to the code.

1. Copying Data from CPU to GPU

cudaMalloc(&d_A, DSIZE * sizeof(float));
cudaMalloc(&d_B, DSIZE * sizeof(float));
cudaMalloc(&d_C, DSIZE * sizeof(float));

cudaMemcpy(d_A, h_A, DSIZE * sizeof(float), cudaMemcpyHostToDevice);
cudaMemcpy(d_B, h_B, DSIZE * sizeof(float), cudaMemcpyHostToDevice);

cudaMalloc allocates memory on the GPU (just like malloc/new does on the CPU).

cudaMemcpy(…, cudaMemcpyHostToDevice) copies arrays from CPU → GPU so the kernel has access to them.

👉 Think of this as “packing your data into the GPU’s backpack before it starts work.”

2. Launching the GPU Kernel

vadd<<< (DSIZE + block_size - 1) / block_size, block_size >>>(d_A, d_B, d_C, DSIZE);

  • The <<< >>> syntax tells CUDA how many blocks and threads per block to use.

  • First parameter → number of blocks.

  • Second parameter → number of threads inside each block.

  • In this case, (DSIZE + block_size - 1) / block_size ensures we launch enough blocks to cover all DSIZE elements.

👉 You can think of this as: “Divide the work into blocks, and within each block, spawn multiple workers (threads) who each handle one element of the arrays.”

3. Copying Results Back to CPU

cudaMemcpy(h_C, d_C, DSIZE * sizeof(float), cudaMemcpyDeviceToHost);
  • Once the GPU is done computing, the results live in device memory.
  • We copy them back into h_C so the CPU can use or print them.

👉 This is like “collecting finished homework from the GPU and bringing it back to the CPU desk.”

Threads, blocks and grids: The CUDA hierarchy

In CUDA, threads are the smallest units of execution — think of them as individual workers.

  • Thread → a single worker
  • Block → a group of threads working together
  • Grid → a collection of blocks
flowchart LR subgraph GRID[Grid] direction TB subgraph B0[Block 0] direction LR T0_0(Thread 0) T0_1(Thread 1) T0_2(Thread 2) T0_3(Thread 3) end subgraph B1[Block 1] direction LR T1_0(Thread 0) T1_1(Thread 1) T1_2(Thread 2) T1_3(Thread 3) end subgraph B2[Block 2] direction LR T2_0(Thread 0) T2_1(Thread 1) T2_2(Thread 2) T2_3(Thread 3) end end

Each thread is supposed to work on a different element of the problem. Blocks help organize these threads, and the grid brings all the blocks together.

Built-In Variables

CUDA provides special built-in variables that let you identify where a thread is running:

  • threadIdx → the thread’s index inside its block.
  • blockIdx → the block’s index inside the grid. (It actually has 3 components: x, y, z.)
  • blockDim → the number of threads in a block.

So, when you launch N blocks, CUDA runs N copies of the kernel, each with a different blockIdx.

Global Indexing

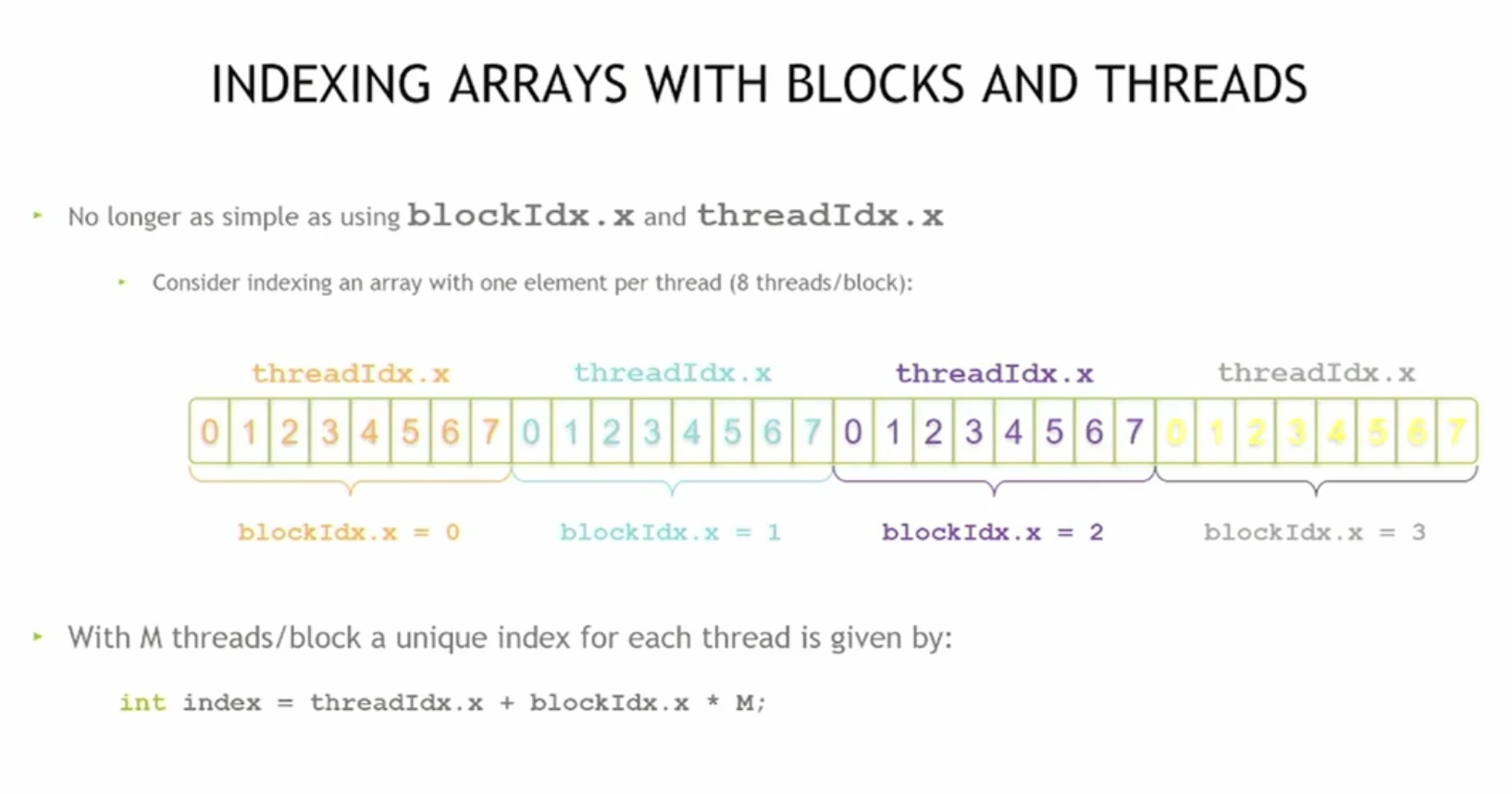

Indexing arrays with blocks and threads To calculate which element a thread should work on, we use global indexing. In the 1D case:

int idx = threadIdx.x + blockDim.x * blockIdx.x;
  • threadIdx.x → position of the thread within its block
  • blockDim.x * blockIdx.x → offset based on which block the thread belongs to
  • The result: each thread gets a unique global index (idx) across the whole grid

Example: 1D Vector Addition

Suppose you launch the kernel as:

add<<< N / threadsPerBlock, threadsPerBlock >>>(...);

Here:

  • threadsPerBlock → how many threads in each block
  • N / threadsPerBlock → how many blocks are needed so that every element of the array is covered

👉 Polished takeaways:

  • Threads are workers
  • Blocks are groups of workers
  • Grids are groups of blocks
  • Using threadIdx, blockIdx, and blockDim, each thread figures out its global index and works on its share of data

Compliance and Standards

When writing CUDA programs, it’s important to be aware of a few compliance and portability considerations. CUDA code looks like C/C++, but not every feature from standard libraries is supported on the GPU. Kernels are often restricted in what functions and objects they can use.

Data Transfer Model

  • Objects can be passed by value between host (CPU) memory and device (GPU) memory.

  • Communication between CPU and GPU happens over a high-speed bus (commonly PCIe). Think of it as a pipeline where data packets flow back and forth.

  • While this bus is fast, it’s still a bottleneck compared to on-device memory bandwidth — which is why minimizing host ↔ device transfers is a key optimization strategy.

Data Type Consistency

In principle, there should be no difference between host datatypes and device datatypes.

However, in practice the size of built-in types (e.g., long) can differ across platforms:

  • On CUDA, long is typically 32-bit
  • On Windows, long is often 64-bit
  • On Linux, long may default to 32-bit on some compilers

This means the same code can behave differently across platforms if you rely on ambiguous types.

👉 Best practice: use fixed-width types like int32_t, uint64_t, or float32 from <stdint.h> to ensure consistency.

Compiler and Environment Differences

  • CUDA programs are compiled with nvcc, which wraps around host compilers (e.g., MSVC on Windows, GCC/Clang on Linux).

  • Because of this, there can be behavioral differences depending on the platform.

  • NVIDIA provides detailed guidelines in the CUDA Programming Guide for setting up environments on different OSes.

⚡ Key Takeaways

  • Minimize host ↔ device transfers to avoid bus bottlenecks.
  • Always prefer fixed-width datatypes (int32_t, uint64_t) for portability.
  • Be aware of compiler differences across Linux/Windows when setting up your CUDA dev environment.
  • Remember: not all standard C/C++ libraries are supported inside CUDA kernels.

Conclusion

This post is part of my ongoing learning journey through the OLCF (Oak Ridge Leadership Computing Facility) CUDA Training Series by NVIDIA. Link to the code examples are present on GitHub.

The explanations are based on what I understood from the lectures, and all images/figures used here are borrowed from the official OLCF materials.

Stay tuned — I’ll continue sharing more notes and experiments as I progress through the rest of the lectures.

Next Post Preview

In the next post, I’ll dive into CUDA optimization techniques — covering memory coalescing, occupancy, and avoiding common performance pitfalls.
